OSGIPL has earned a high reputation as a pre-engineered building solution provider in India by offering unimaginable quality and imaginative metal structures. Supported by a wide network of clients, we make sure our PEB is a convenient, easy, and economic option for traditional buildings. As one of the top pre-engineered building solutions, we are committed to meeting multi-faceted structural and aesthetic designs required by our clients.
Using state-of-the-art technology, our team meets clients’ expectations and therefore makes them prefer choosing us for all their PEB needs.
Benefits of Our Pre-Engineered Buildings
Traditional construction often comes with delays, high costs, and endless hassles. But a Pre-Engineered Building is built fast and offers long-term benefits. Since we pre-fabricate components in our factories and only assemble on-site, our projects are completed in almost half the time compared to conventional buildings.
Cost savings are another major benefit. As one of the leading Pre-Engineered Building Solutions providers, we use optimized steel designs that reduce material waste and overall expenses. PEBs also require very little maintenance, which keeps long-term costs under control.
Plus, our pre-engineered buildings are highly flexible. Whether you need a showroom, warehouse or an industrial facility, we can tailor the design to meet your specific requirements. When it comes to durability, OSGIPL PEBs are built with high-quality steel to withstand harsh weather and seismic activity. Many designs include energy-efficient roofing and insulation, making them eco-friendly too.
Why Choose OSGIPL for Pre-Engineered Building Solutions
- We have many years of experience in making strong and safe buildings.
- We have worked on factories, shops, warehouses, and many other projects.
- We make every building to match the space and budget of the client.
- Our designs can grow in the future if more space is needed.
- We use modern machines that help us build with care and accuracy.
- We handle everything from design to building to after-sales support.
- Our project team works closely with clients to keep things smooth.
- We use steel in a smart way to reduce costs but keep the strength high.
- Our buildings last long and give value for many years.
Being a leading name, OSGIPL focuses on quality in its Pre-Engineered Building Solutions. We use quality materials, advanced technologies and a strict quality control process. If you are looking for a trusted entity for pre-engineered building solutions, feel free to contact OSGIPL. We will be happy to help you.
GLOBAL STANDARDS
International Requirements
Pre-engineered buildings from Om Shree Ganesh are custom-designed to match the needs of the customer. For application load, all buildings are planned and constructed in line with Indian Standards. Buildings are built and constructed using the most recent editions of the following codes:
01
Bureau of Indian Standards
IS-800, IS-801, IS-875, IS1 893
02
American Institute of Steel Construction Inc.
USA (AISC)
03
American Iron and Steel Institute
USA (AISI)
04
Metal Building Manufacturers Association Inc
USA (MBMA)
05
American Welding Society
(AWS)
06
Uniform Building Code
(UBC)
Pre-engineered buildings include
- All primary and secondary framing
- All connections
- Choice of 2 roof systems
- Choice of 3 wall systems
- All fixings
- All sealants for weather-proofing
- Thermal or Acoustic insulation
- Liner panels
- Flashings
- Integrated accessories
- Crane beams and rails
- Mezzanine floors

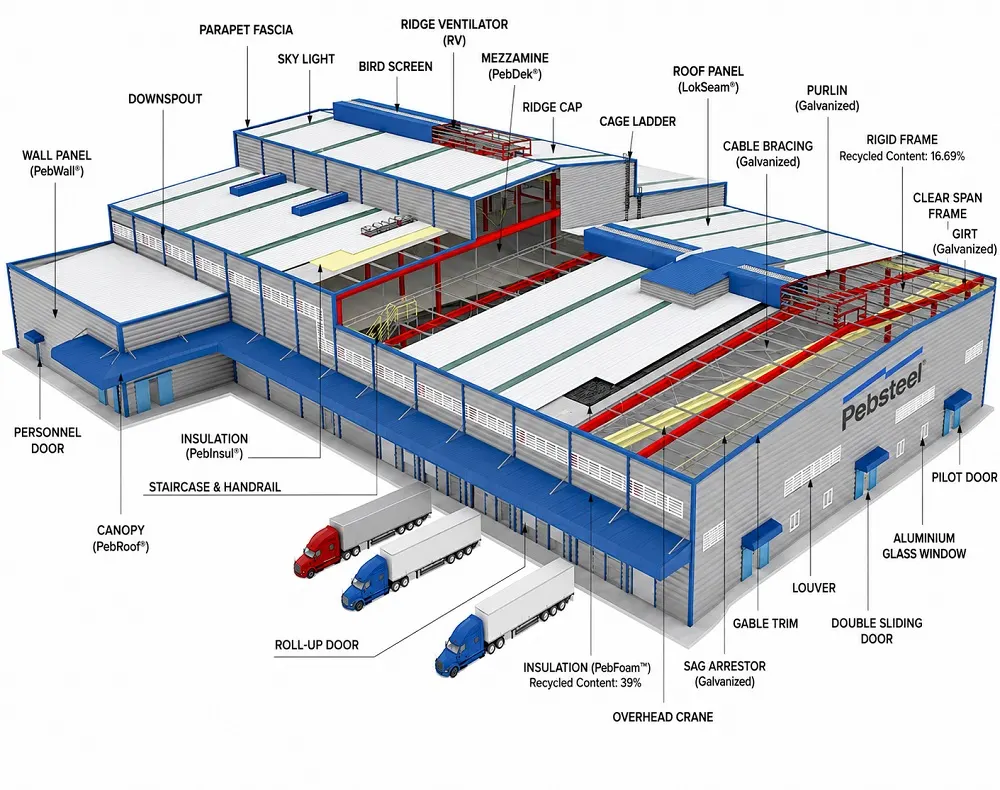

Pre Engineered Building Consists Of The Following Components
- Intermediate frame: Rafter
- Intermediate frame: Column
- Wind Bracing
- Purlin
- Girt
- Roof Panel
- Wall Panel
- Insulation
- Eave Gutter
- Turbo Vent
- Roll-up Door
- Ridge Vent
- Framed Window
- Skylight
- Canopy
- Parapet / Fascia
- Crane beams and rails
- Mezzanine
Pre-engineered buildings from Om Shree Ganesh are custom-designed to match your specific needs. The following are the basic characteristics of a pre-engineered structure:

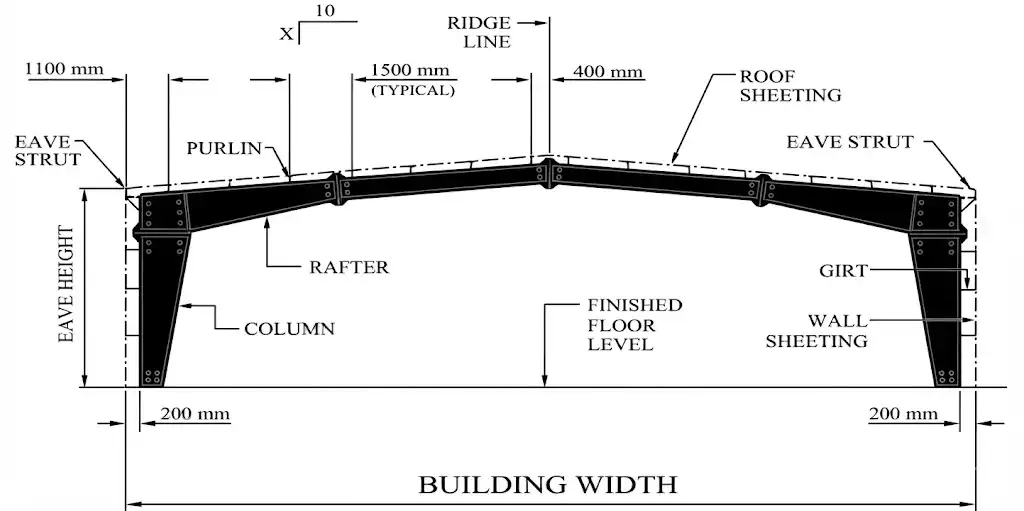

Building width: No matter what primary system is used, the building width is defined as the distance from the outside of the eave strut of one sidewall to the outside of the eave strut of the opposite sidewall.
Building length: This is a mixture of numerous bay lengths defined as the distance between the outside flanges of end wall columns in opposite end walls.
Building height: Building height is the eave height, which is usually the distance from the bottom of the mainframe column base plate to the top outer point of the eave strut.
End Bay Length: The distance between the outer side of the outer flange of end wall columns and the centre line of the first interior frame column is known as the end bay length.
Pre-engineered buildings from Om Shree Ganesh are custom-designed to match your specific needs. The following are the basic characteristics of a pre-engineered structure:
Interior bay length: This is the distance between the centre line of two adjacent Interior mainframe columns. The most common bay spacings are 6 m, 7.5 m and 9 m. The bay lengths can go up to 5 m.
Roof slopes:This is the angle of the roof concerning the horizontal base. The most common roof slope is 1/10. Any feasible roof slope, such as 1/12, 1/15, and so on, is attainable.
Loads
Roof Live Load
Minimum live load considered for the roof structure.
0.75 kN /m²Wind Load
Designed according to the applicable Indian Standard.
IS: 875 (Part 3)–1987Seismic Loads
Seismic design considerations are based on the specified standard.
IS 1893 (Part 1): 2002Collateral Loads
Typical collateral load values considered for the structure.
0.1 – 0.3 kN/m²Dead Load
Structural dead load is considered according to the applicable standard.
IS: 875 (Part 1)–1987Design Standard: Om Shree Ganesh pre-engineered buildings are designed considering the specified minimum loads and applicable Indian Standards.
