Galvanized Steel Sheets & Coils
Galvanized Steel Sheets & Coils
Our galvanized steel products are available in different thicknesses, coatings and strength ranges according to application requirements.
GP Products
We deal in a wide range of galvanized steel products suitable for industrial, roofing and fabrication requirements.

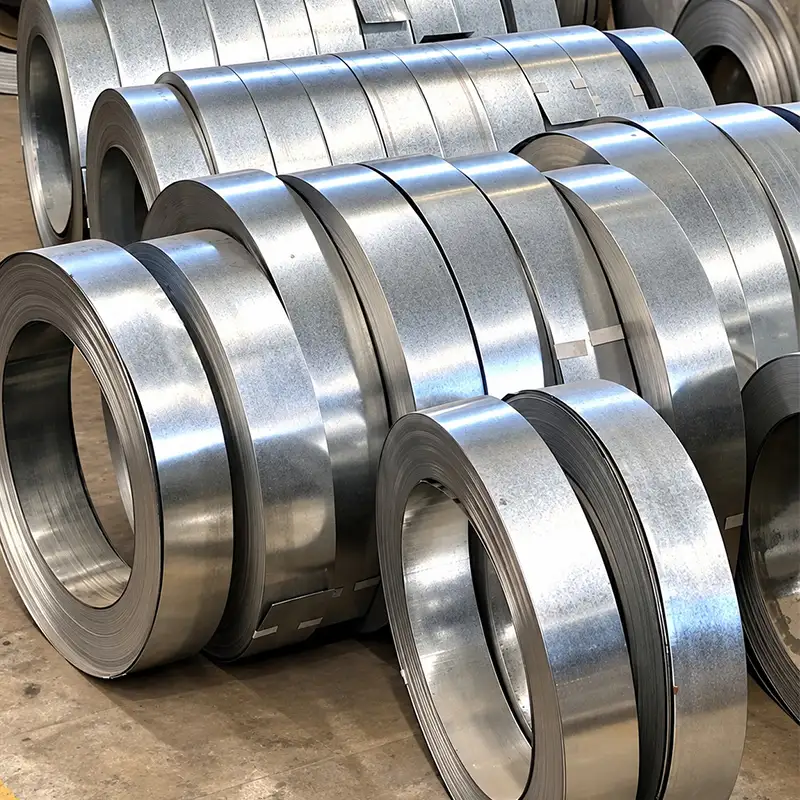

- Slit Coils
- Galvanized Corrugated
- CTL (Cut To Length) sheets
| Product Specification | Galvanized Plain (GP) | Galvanized Corrugated (GC) | Galvanized Plain Skin Pass (GPSP) |
|---|---|---|---|
| Thickness | 0.20 - 3.00 mm | 0.30 - 3.00 mm | 0.30 - 3.00 mm |
| Width | As per requirement | ||
| Length | As per requirement | ||
| Coating | 80 gsm - 550 gsm | 80 gsm - 550 gsm | 80 gsm - 550 gsm |
| Tensile Strength | 245 MPA - 550 MPA | 245 MPA - 550 MPA | 245 MPA - 550 MPA |
| Chromating | Chromated / Non-Chromated / Oily | ||
| Surface Finish | Glossy finish with Uniform Spangle, Zero Spangle | ||
Brands We Deal In
We are associated with trusted and reputed steel brands, providing quality products backed by reliability, consistency and industry experience.

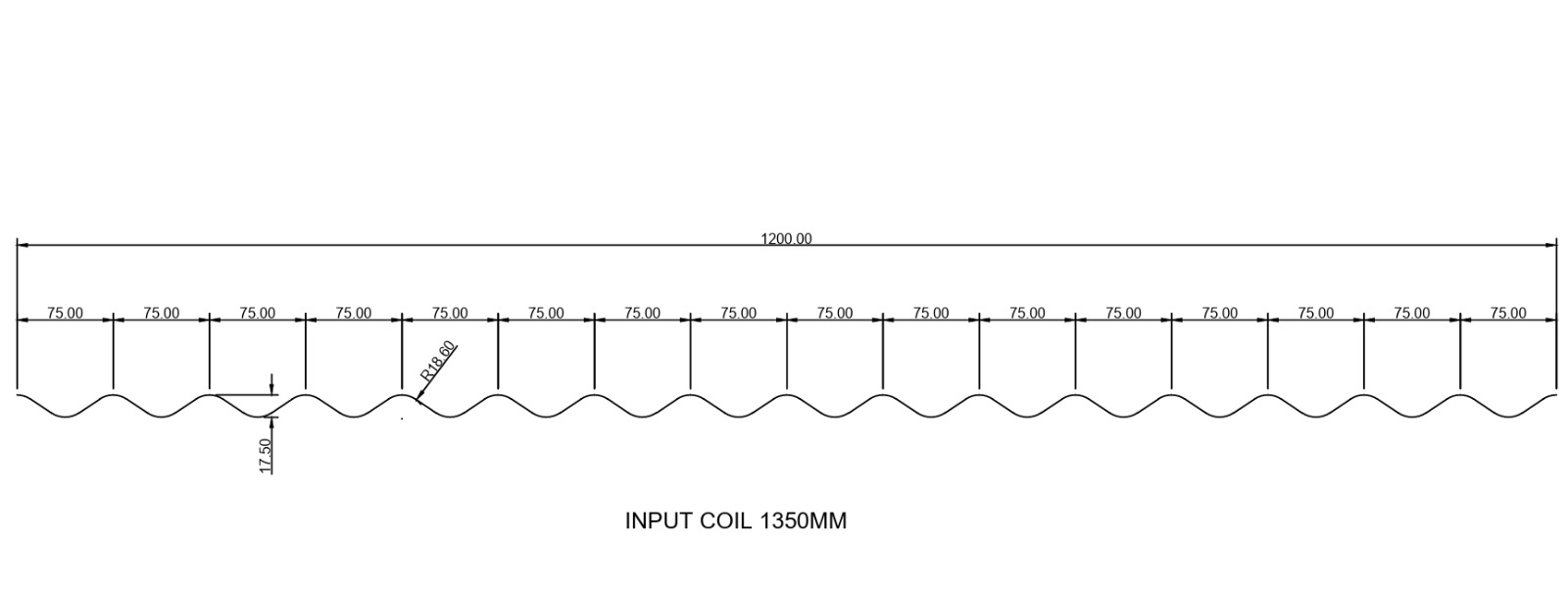

Corrugated Sheet Specifications
- Part Name: Corrugation Sheet (Hercules Cranes Pvt. Ltd.)
- Raw Material: 1350 mm input coil width
- Finished Width: 1200 mm overall width
- Pitch Distance: 75 mm wave-to-wave pitch
- Depth & Radius: 17.50 mm height aur R18.60 mm curve radius
